Type U – monorail hoist with twin trolleys

ABUS Unterflaschenkatze Bauart U

At a glance

  • SWL range 6.3 t - 25 t.
  • Cross travel trolley with direct drive.
  • No exposed reduction gearing.
  • Load is distributed over 8 wheels.

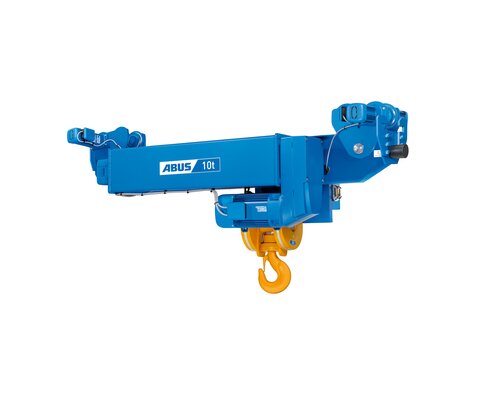

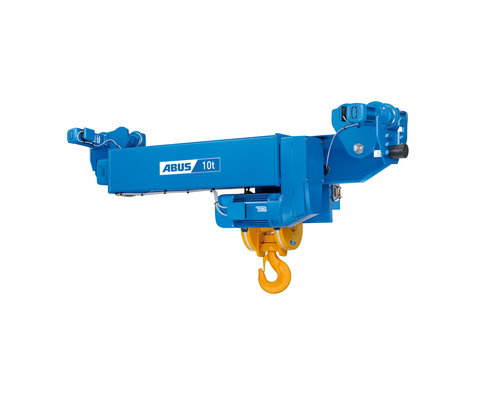

Figure ABUS bottom flange trolley type U
Interested in this product?
Then request now for an offer!
Price enquiry

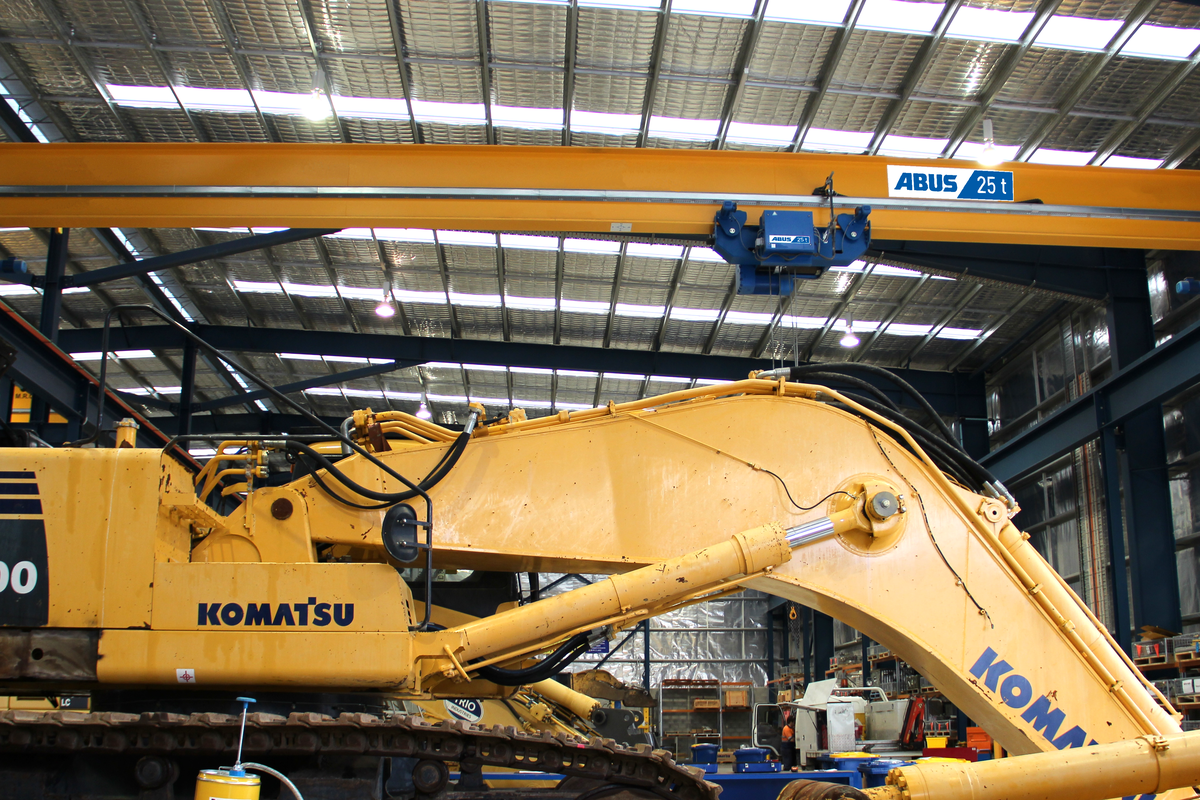

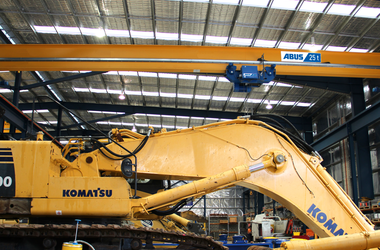

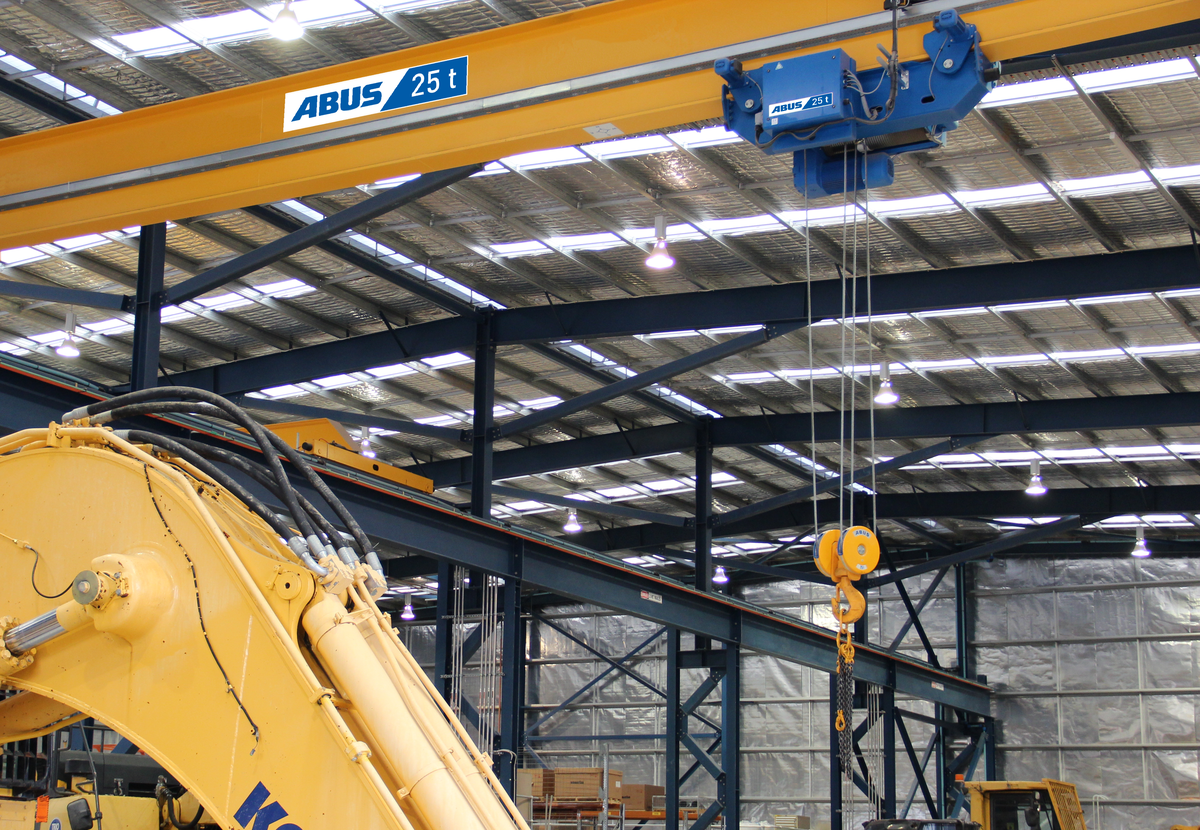

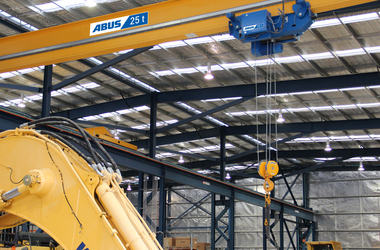

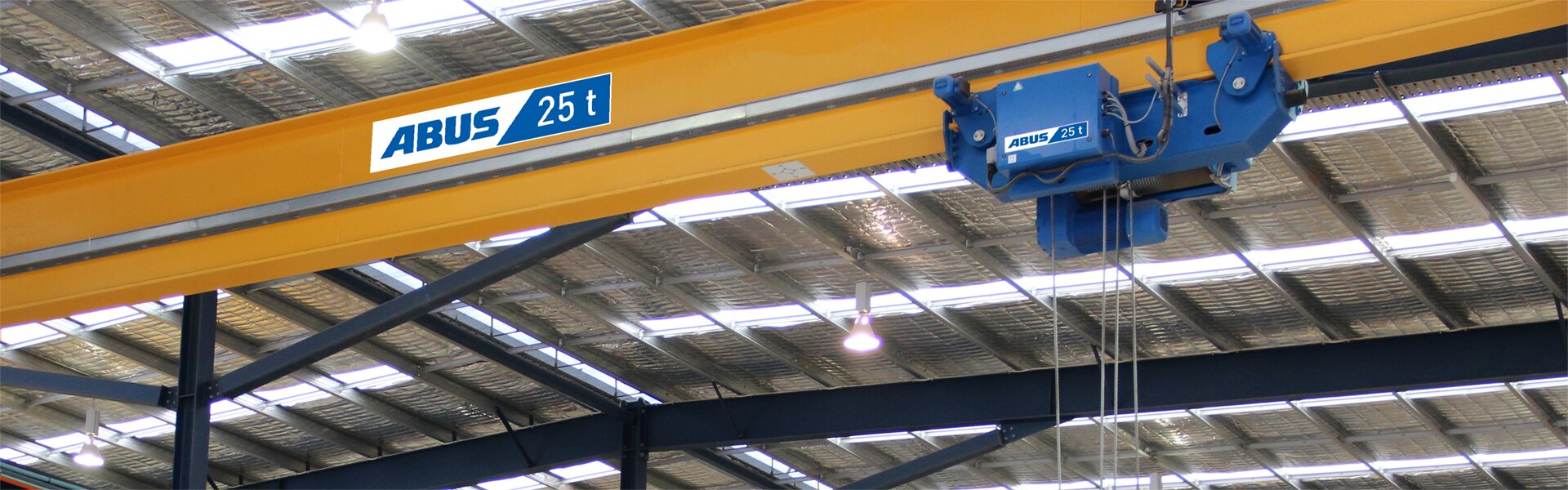

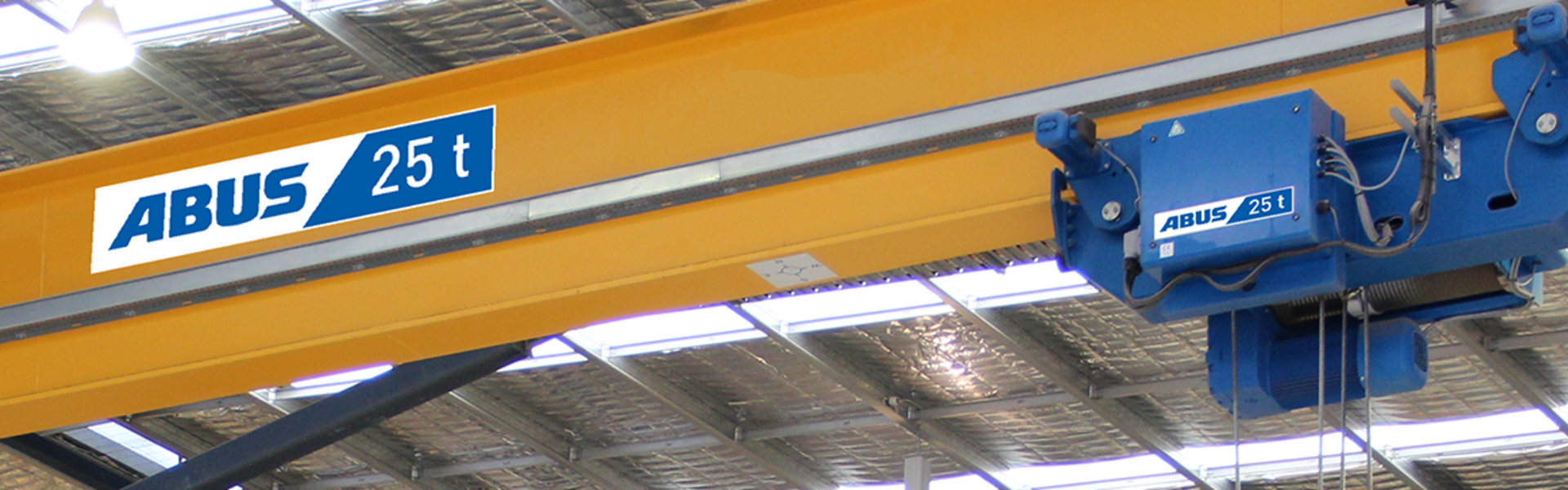

ABUS underflange trolley type U on ABUS overhead traveling crane at company in Eilbek ABUS underflange trolley type U on ABUS overhead traveling crane with excavator at a company in Eilbek

TYPE U – MONORAIL HOIST WITH TWIN TROLLEYS

The monorail hoist with twin trolleys type U is used for high load capacities and long hook paths. The SWL range extends between 6.3 t and 25 t. The cross travel trolleys feature direct drives without exposed reduction gearing. This lower flange trolley is fitted with 8 wheels for better load distribution. Thus ordinary rolled section beams can be used for monorail track applications. Cranes with higher load capacities yet smaller spans can be designed as single-girder cranes when using the hoist type S. Advantages as to the total investment can be achieved in comparison to the double-girder crane.
