OVERHEAD TRAVELLING CRANES

Our overhead travelling cranes for your area of application

The overhead travelling cranes from ABUS can be perfectly adapted to your areas of application and operational requirements. You will find different designs such as single girder and double girder overhead travelling cranes, underslung travelling cranes, single girder wall travelling cranes and single girder semi-goliath cranes.

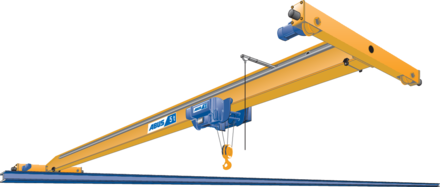

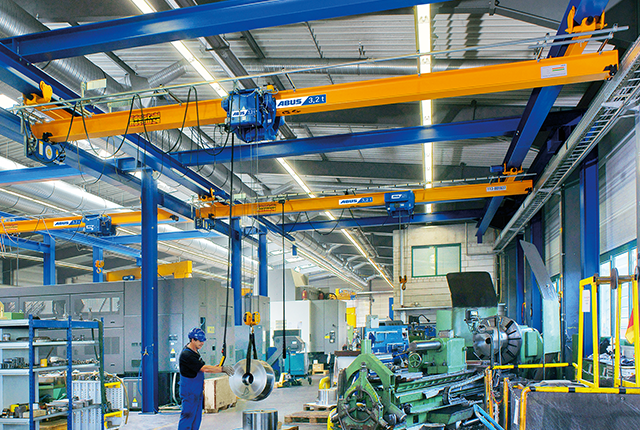

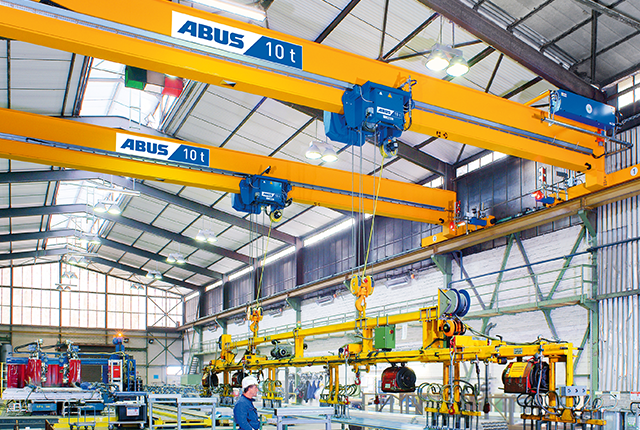

Make ideal use of available space – this works best with an overhead travelling crane. This overhead travelling crane enables an excellent use of space even in low buildings and achieves optimum lifting heights thanks to its favourable dimensions. This indoor crane offers safe working load capacities of up to 16 t and spans of up to 39 m.

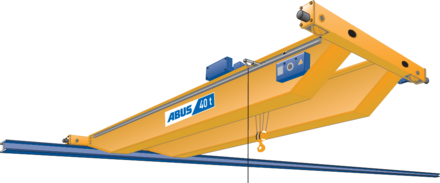

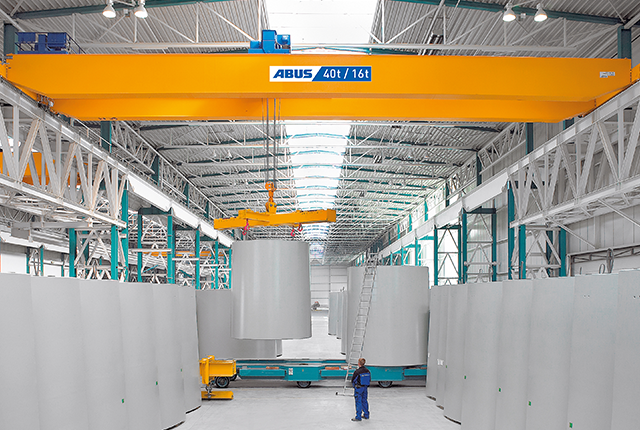

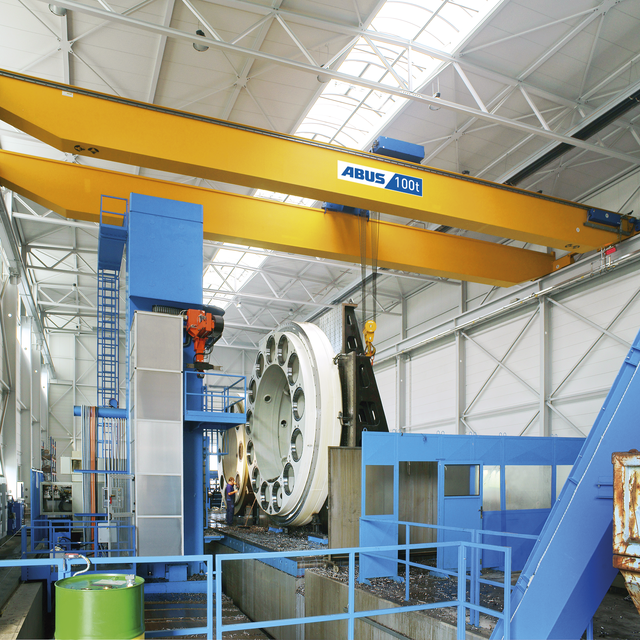

A double girder overhead travelling crane is ideal for lifting and moving particularly heavy loads of up to 120 t. It impresses with a large span of up to 40 m and can be equipped with additional features depending on the requirements, such as maintenance walkways on the crane bridges, a crab unit with a maintenance platform or with an additional hoist. Therefore, a crab unit with a maintenance platform and a maintenance walkway on the crane bridge provide significant advantages when carrying out maintenance work.

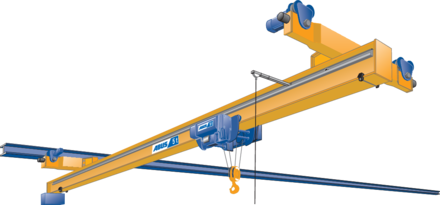

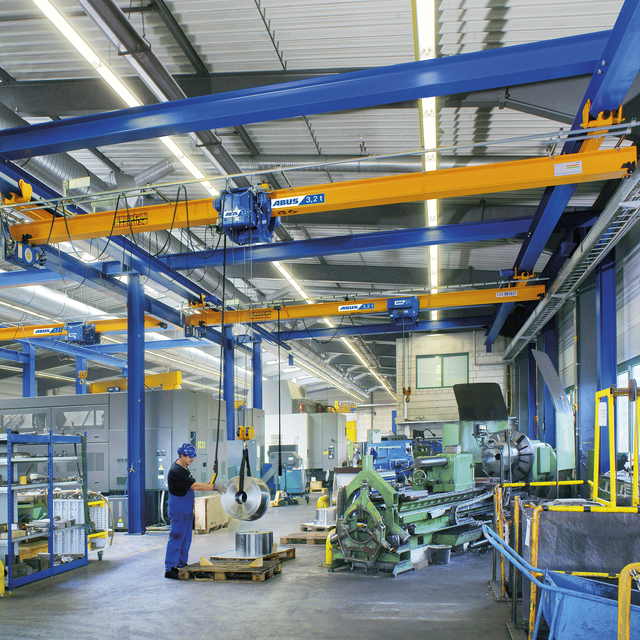

Even buildings without preparation for a runway beam (e.g. non-load-bearing building supports) can be equipped with an overhead travelling crane.  An underslung travelling crane is exactly the right thing for such building conditions. The runway beams are mounted directly under the ceiling without the need for any additional supports, making ideal use of available space.  The underslung travelling cranes offer load capacities of up to 8 t and spans of up to 17.5 m.

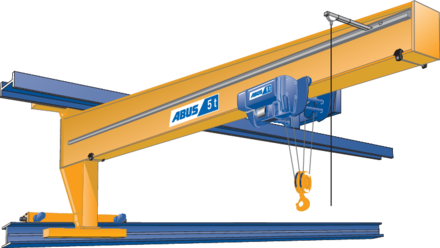

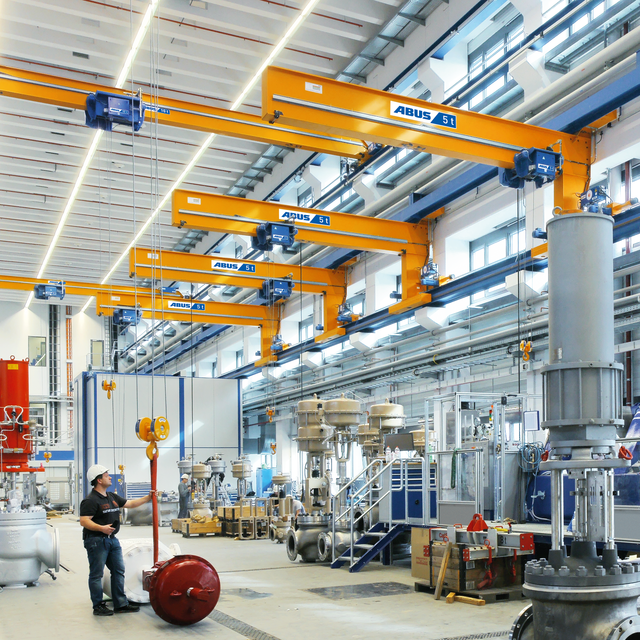

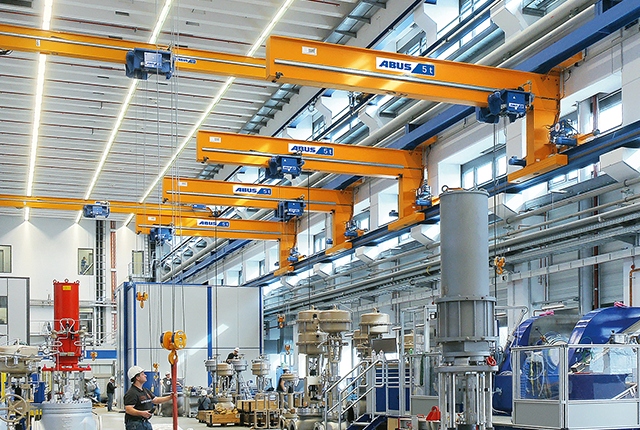

A single girder wall travelling crane is usually installed below a larger overhead travelling crane, i.e. at the mid-level of the building. In perfect interaction with the travelling overhead travelling crane above, the single girder wall travelling crane travels along the building wall and thus serves several workplaces at the same time. The single girder wall travelling crane can achieve a maximum load capacity of up to 5 t and a maximum jib length of 12 m (SWL dependent).

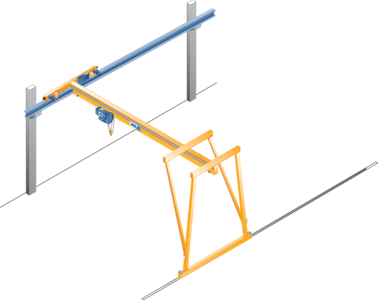

Our single girder semi-goliath crane also travels at the mid-level of the building and can serve multiple workplaces in a production line. If the building floor is even and has a sufficient load-bearing capacity, the lower end carriage can be moved directly on it using a flat wheel – consequently removing the need for a low-level guide rail, which would cause an obstacle. Our ABUS single girder semi-goliath cranes have maximum load capacity of 10 t and a span of up to 15 m (SWL dependent).

Overhead travelling cranes from ABUS

ABUS is one of the major manufacturers of standard indoor cranes in Europe – and we offer you an all-round service. We develop customized solutions for economical material flow, assist with the planning, maintenance and repair of your crane installations and are at your disposal with our professional services at any time.

Thanks to the various installation options, our cranes can be ideally integrated into the planning for a new building or for installation into an existing building and guarantee maximum flexibility, functionality and ideal operating characteristics.

No crane travel without runway beam

We can also offer you a customized solution for the required runway beam, depending on your project requirements or existing building support structure. Our team of engineers supports you competently in all planning phases.  In this way, we provide you a complete solution comprising crane and runway beam – everything from one source.

Additional equipment and options

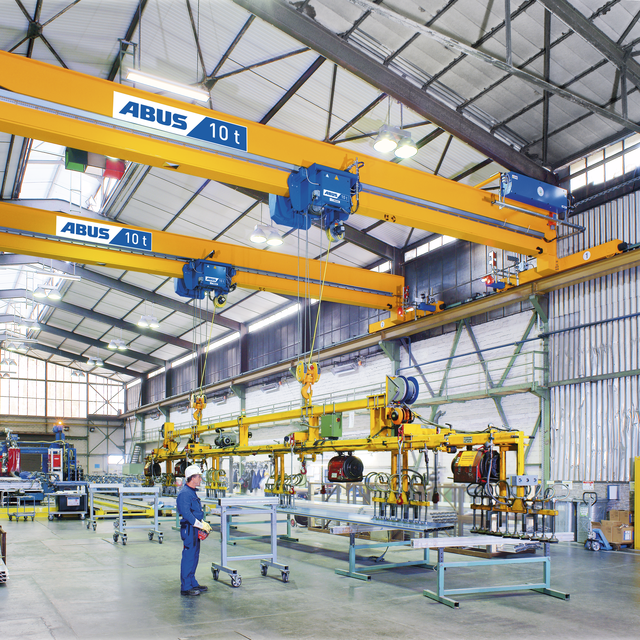

Our innovative ABUS radio control ‘ABURemote’ with inductive charging cradle is a useful piece of additional equipment available for every ABUS overhead travelling crane. With our ABURemote radio control you are independent – You are free to choose the location from which you want to operate the overhead travelling crane and therefore will always have the best view of the complete working area.  The ABURemote radio control has numerous functions and options, for example, a tandem control system for two overhead travelling cranes with two hoists on each crane. In combination with our modern control system ABUControl, the handling of long products is not only safe but also child’s play thanks to our synchronization and sway controls.

Additional equipment for overhead travelling cranes such as highly-efficient LED lights that optimally illuminate the working area of the cranes and a calibratable (also retrofittable) weighing bottom block are two examples of further ABUS options in crane construction that enhance operation. Everything for the safety and operating comfort of your employees. Put together your own overhead cranes and completely individual crane systems using our many additional options!

Your crane installation from ABUS Crane Systems

Let a competent ABUS contact advise you on your project about overhead cranes or other crane systems. We accompany you from the planning stage through installation (by request, including installation equipment such as mobile cranes, fork lifts or aerial work platform) to testing and commissioning before initial operation. We would be pleased to support you in the efficient planning & design of your facility through multiple working levels. For this purpose, our crane technology offers you further solutions such as a slewing jib crane (pillar jib cranes, wall-mounted jib cranes), our lightweight mobile gantry (LPK) or our suspended HB monorail or light crane systems. It goes without saying that we also offer you suitable hoists such as electric chain hoists or electric wire rope hoists. We will advise you which crane option is suitable for your project and would be pleased to offer the manufacture of new systems or consider the modernization of existing crane systems. Please contact us!
